LLVM Pass 其一：PassManager
Homura 我摸到了！
 2022-06-26 19:51:06      4.3k 字  22 分钟

Untitled

现身吧，青眼亚白龙！ 把他给我烧的一干二净，毁灭的焦热疾风弹！

上一期我们讲到了每个Pass基本的结构，这期我们从PassManager开始讲述Pass从创建到执行的整个流程，以及涉及到的种种问题

声明

include/llvm/IR/PassManager.h

1
2
3
4
5
6
7
8
template <typename IRUnitT,
          typename AnalysisManagerT = AnalysisManager<IRUnitT>,
          typename... ExtraArgTs>
class PassManager : public PassInfoMixin<
                        PassManager<IRUnitT, AnalysisManagerT, ExtraArgTs...>> {
  ...
	std::vector<std::unique_ptr<PassConceptT>> Passes;
}

关于声明中要注意的有一点：上一期我们提到继承了PassInfoMixin的类我们就可以视为是一个Pass（从语法角度来说），也就是说PassManager本身也是一个Pass

接着来讲一下模板参数

IRUnit

对于每个Pass有其作用的范围，有的是作用在函数上的，有的是作用到一个CFG中的

还记得上期里讲到新Pass是通过run传进去的参数来决定是作用到什么样的pass么

AnalysisManagerT

添加一个Pass

1
2
3
4
5
6
7
8
9
10
11
12
template <typename PassT>
LLVM_ATTRIBUTE_MINSIZE
    std::enable_if_t<!std::is_same<PassT, PassManager>::value>
    addPass(PassT &&Pass) {
  using PassModelT =
      detail::PassModel<IRUnitT, PassT, PreservedAnalyses, AnalysisManagerT,
                        ExtraArgTs...>;
  // Do not use make_unique or emplace_back, they cause too many template
  // instantiations, causing terrible compile times.
  Passes.push_back(std::unique_ptr<PassConceptT>(
      new PassModelT(std::forward<PassT>(Pass))));
}

我们这里先不管enable_if_t的部分，参数也没什么可讲的，我们来看函数体的部分

可以看到实际传给PassManager的其实是一个PassModelT的实例，而不是一个Pass

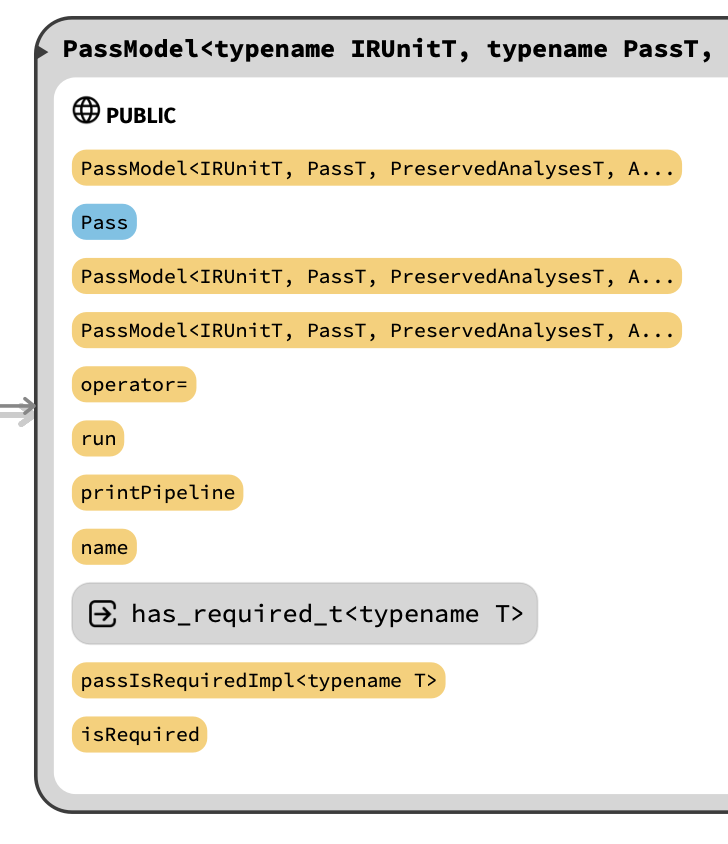

PassModel

Untitled

include/llvm/IR/PassManagerInternal.h

1
2
3
4
5
6
7
8
9
10
template <typename IRUnitT, typename PassT, typename PreservedAnalysesT,
          typename AnalysisManagerT, typename... ExtraArgTs>
struct PassModel : PassConcept<IRUnitT, AnalysisManagerT, ExtraArgTs...> {
  ...
	PreservedAnalysesT run(IRUnitT &IR, AnalysisManagerT &AM,
                         ExtraArgTs... ExtraArgs) override {
    return Pass.run(IR, AM, ExtraArgs...);
  }
	PassT Pass;
}

PassModel做的事情也很简单，最重要的就是运行保存的Pass实例。

上期提到了实现Pass时isRequired是可选的。对于非required的pass也不需要手动编写一个返回false的函数，而秘密就在于这个函数中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
template <typename T>
using has_required_t = decltype(std::declval<T &>().isRequired());

template <typename T>
static std::enable_if_t<is_detected<has_required_t, T>::value, bool>
passIsRequiredImpl() {
  return T::isRequired();
}
template <typename T>
static std::enable_if_t<!is_detected<has_required_t, T>::value, bool>
passIsRequiredImpl() {
  return false;
}

bool isRequired() const override { return passIsRequiredImpl<PassT>(); }

而这部分类似的代码还存在于PassInstrumentation的代码中。对于PassInstrumentation来说接收的就是一个PassT，并不一定就是PassModel 。

1
2
3
4
5
6
7
8
9
10
11
12
13
template <typename PassT>
using has_required_t = decltype(std::declval<PassT &>().isRequired());

template <typename PassT>
static std::enable_if_t<is_detected<has_required_t, PassT>::value, bool>
isRequired(const PassT &Pass) {
  return Pass.isRequired();
}
template <typename PassT>
static std::enable_if_t<!is_detected<has_required_t, PassT>::value, bool>
isRequired(const PassT &Pass) {
  return false;
}

添加一个PassManager

除了可以添加一个常规的Pass，还可以添加一个PassManager到一个PassManager中，听起来很奇怪，但是PassManager的行为也是一种Pass

include/llvm/IR/PassManager.h

1
2
3
4
5
6
7
template <typename PassT>
LLVM_ATTRIBUTE_MINSIZE
    std::enable_if_t<std::is_same<PassT, PassManager>::value>
    addPass(PassT &&Pass) {
  for (auto &P : Pass.Passes)
    Passes.push_back(std::move(P));
}

这里通过使用enable_if_t来判断这个PassT是否为PassManager。

关于为什么要这么做，目前的PassManager run的部分没有处理嵌套的情况，注释中提到了

cases rely on executing nested pass managers. Doing this could reduce implementation complexity and avoid potential invalidation issues that may happen with nested pass managers of the same type.

大意就是减少实现复杂度以及减少问题

Run

先来大概看一遍代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
/// Run all of the passes in this manager over the given unit of IR.
/// ExtraArgs are passed to each pass.
PreservedAnalyses run(IRUnitT &IR, AnalysisManagerT &AM,
                      ExtraArgTs... ExtraArgs) {
  PreservedAnalyses PA = PreservedAnalyses::all();

  // Request PassInstrumentation from analysis manager, will use it to run
  // instrumenting callbacks for the passes later.
  // Here we use std::tuple wrapper over getResult which helps to extract
  // AnalysisManager's arguments out of the whole ExtraArgs set.
  PassInstrumentation PI =
      detail::getAnalysisResult<PassInstrumentationAnalysis>(
          AM, IR, std::tuple<ExtraArgTs...>(ExtraArgs...));

  for (unsigned Idx = 0, Size = Passes.size(); Idx != Size; ++Idx) {
    auto *P = Passes[Idx].get();

    // Check the PassInstrumentation's BeforePass callbacks before running the
    // pass, skip its execution completely if asked to (callback returns
    // false).
    if (!PI.runBeforePass<IRUnitT>(*P, IR))
      continue;

    PreservedAnalyses PassPA;
    {
      TimeTraceScope TimeScope(P->name(), IR.getName());
      PassPA = P->run(IR, AM, ExtraArgs...);
    }

    // Call onto PassInstrumentation's AfterPass callbacks immediately after
    // running the pass.
    PI.runAfterPass<IRUnitT>(*P, IR, PassPA);

    // Update the analysis manager as each pass runs and potentially
    // invalidates analyses.
    AM.invalidate(IR, PassPA);

    // Finally, intersect the preserved analyses to compute the aggregate
    // preserved set for this pass manager.
    PA.intersect(std::move(PassPA));
  }

  // Invalidation was handled after each pass in the above loop for the
  // current unit of IR. Therefore, the remaining analysis results in the
  // AnalysisManager are preserved. We mark this with a set so that we don't
  // need to inspect each one individually.
  PA.preserveSet<AllAnalysesOn<IRUnitT>>();

  return PA;
}

可以看到这里从PassInstrumentationAnalysis获取了一个PassInstrumentation（简称PI），PI中存了各种各样的callback，在跑Pass的前后会执行对应的callback。

这边的逻辑也比较简单，关键点在于Analysis与Instrumentation的各种callback相关的

对Analysis的影响

我们之前已经讲过通过PreservedAnalyses来管理Pass会导致哪些Analysis的结果失效，在跑Pass后会将结果的PreservedAnalyses用于修正AnalysisManager里保存的分析结果，也就是在这里AnalysisManager（以下简称AM）会实际更新内部保存的信息

1
AM.invalidate(IR, PassPA);

而在所有Pass跑完之后则preserve当前IRUnit类型的AnalysesSet，这里使用一个Set是为了避免和这个IRUnit类型的Analysis逐个比较。在最后preserve整个set的原因是在跑每个pass的时候都在不断的更新其中的AnalysisManager以及PreserveAnalyses信息，都跑完之后可以保证当前这个IRUnit类型的Analyses都确保是preserved的。

我一开始对这里的写法感到奇怪，为什么都跑完了、修改过了还是preserved的。我最初的想法是被保存的Analysis，理解上更偏向于是被缓存了的Pass，但是仔细一想我觉得换一种说法来描述PreserveAnalyses就好理解了：PreserveAnalyses中记录的是在这之后能够正确获取结果的Analyses。也就是说跑完PassManager这个“Pass”之后所有的Analysis依然是能够正确获取的

在编写自己Pass的时候要手动指定使得哪些Analysis失效，原因是因为你在这个Pass里面做过了修改并且没有更新AnalysisManager的信息，我觉得理论上来说如果每个人在Pass里面自己做了AM.invalidate的操作本质上是一样的，在这里只是PassManager帮你做了这个事情（这里不考虑这个做法是否有必要，只是讨论实现的本质）。那么如果要在Pass内部进行修改再做分析，也可以直接通过invalidate的操作更新AM之后再获取数据

关于Analysis更详细的部分会在下一期讲述

runBeforePass

include/llvm/IR/PassInstrumentation.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
template <typename IRUnitT, typename PassT>
bool runBeforePass(const PassT &Pass, const IRUnitT &IR) const {
  if (!Callbacks)
    return true;

  bool ShouldRun = true;
  if (!isRequired(Pass)) {
    for (auto &C : Callbacks->ShouldRunOptionalPassCallbacks)
      ShouldRun &= C(Pass.name(), llvm::Any(&IR));
  }

  if (ShouldRun) {
    for (auto &C : Callbacks->BeforeNonSkippedPassCallbacks)
      C(Pass.name(), llvm::Any(&IR));
  } else {
    for (auto &C : Callbacks->BeforeSkippedPassCallbacks)
      C(Pass.name(), llvm::Any(&IR));
  }

  return ShouldRun;
}

runBeforePass除了执行一些常规callback之外，不同之处在于做了是否要执行当前pass的判断。如果并非required的pass则根据callback中的函数来确定是否运行当前pass

而runAfterPass就是简单的执行所有callback，这里就不再赘述

更具体的PassManager

讲完了基础的PassManager，我们再来看一下通过PassManager衍生出更加具体的PassManager都是怎样的。不过不管怎么衍生，关于执行的结果以及analysis处理以及callback这些的处理大致是一致的，只是加了一些对于某类IRUnit专用的处理操作

主要有以下这么几种方式

类型别名

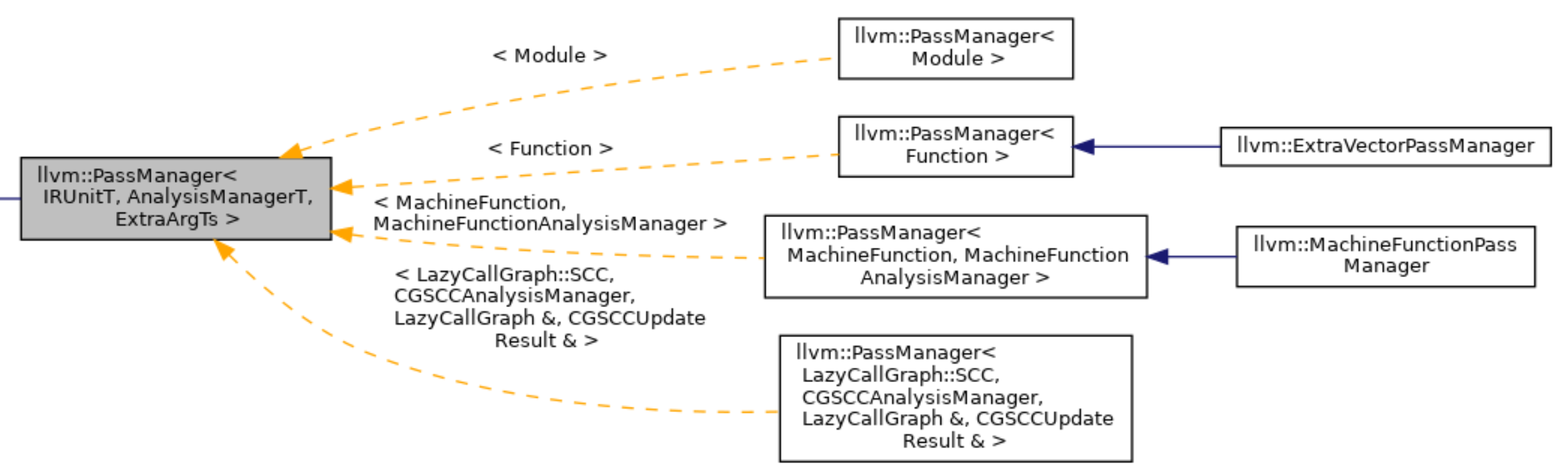

根据IRUnit的不同，有这么几类PassManager

Untitled

代码中是这样的

PassManager.h

1
2
using ModulePassManager = PassManager<Module>;
using FunctionPassManager = PassManager<Function>;

这种没什么可讲的，就是简单的用了一个别名来标识

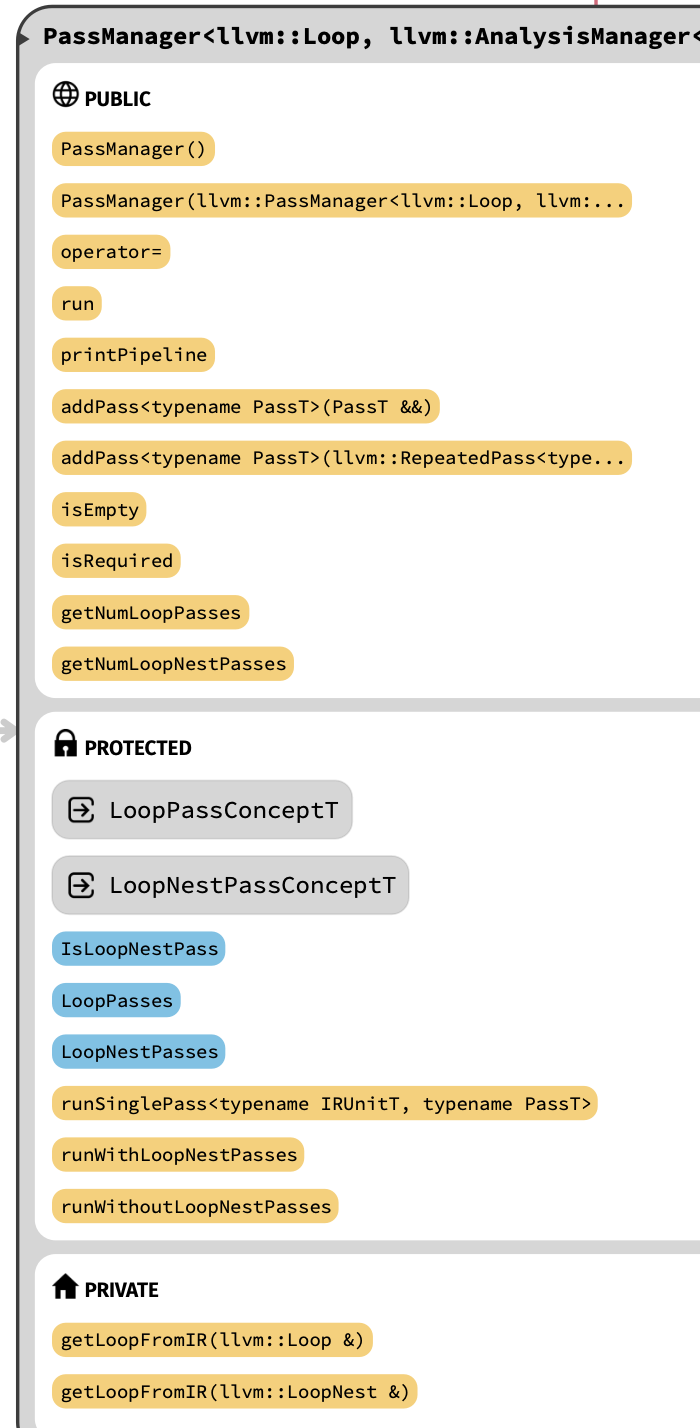

针对Loop特化的PassManager

Untitled

include/llvm/Transforms/Scalar/LoopPassManager.h

1
2
3
4
5
6
7
8
9
10
11
12
// Explicit specialization and instantiation declarations for the pass manager.
// ...
template <>
class PassManager<Loop, LoopAnalysisManager, LoopStandardAnalysisResults &,
                  LPMUpdater &>
    : public PassInfoMixin<
          PassManager<Loop, LoopAnalysisManager, LoopStandardAnalysisResults &,
                      LPMUpdater &>> {
public:
  explicit PassManager() = default;
  ...
}

通过成员可以看到多了一些Loop相关的处理

addPass

还是熟悉的enable_if，主要是根据参数是RepeatedPass还是普通Pass以及PassT是否满足HasRunOnLoopT产生了四种情况

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
template <typename PassT>
LLVM_ATTRIBUTE_MINSIZE
    std::enable_if_t<is_detected<HasRunOnLoopT, PassT>::value>
    addPass(PassT &&Pass) {
  using LoopPassModelT =
      detail::PassModel<Loop, PassT, PreservedAnalyses, LoopAnalysisManager,
                        LoopStandardAnalysisResults &, LPMUpdater &>;
  IsLoopNestPass.push_back(false);
  // Do not use make_unique or emplace_back, they cause too many template
  // instantiations, causing terrible compile times.
  LoopPasses.push_back(std::unique_ptr<LoopPassConceptT>(
      new LoopPassModelT(std::forward<PassT>(Pass))));
}

template <typename PassT>
LLVM_ATTRIBUTE_MINSIZE
    std::enable_if_t<!is_detected<HasRunOnLoopT, PassT>::value>
    addPass(PassT &&Pass) {
  using LoopNestPassModelT =
      detail::PassModel<LoopNest, PassT, PreservedAnalyses,
                        LoopAnalysisManager, LoopStandardAnalysisResults &,
                        LPMUpdater &>;
  IsLoopNestPass.push_back(true);
  // Do not use make_unique or emplace_back, they cause too many template
  // instantiations, causing terrible compile times.
  LoopNestPasses.push_back(std::unique_ptr<LoopNestPassConceptT>(
      new LoopNestPassModelT(std::forward<PassT>(Pass))));
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
// Specializations of `addPass` for `RepeatedPass`. These are necessary since
// `RepeatedPass` has a templated `run` method that will result in incorrect
// detection of `HasRunOnLoopT`.
template <typename PassT>
LLVM_ATTRIBUTE_MINSIZE
    std::enable_if_t<is_detected<HasRunOnLoopT, PassT>::value>
    addPass(RepeatedPass<PassT> &&Pass) {
  using RepeatedLoopPassModelT =
      detail::PassModel<Loop, RepeatedPass<PassT>, PreservedAnalyses,
                        LoopAnalysisManager, LoopStandardAnalysisResults &,
                        LPMUpdater &>;
  IsLoopNestPass.push_back(false);
  // Do not use make_unique or emplace_back, they cause too many template
  // instantiations, causing terrible compile times.
  LoopPasses.push_back(std::unique_ptr<LoopPassConceptT>(
      new RepeatedLoopPassModelT(std::move(Pass))));
}

template <typename PassT>
LLVM_ATTRIBUTE_MINSIZE
    std::enable_if_t<!is_detected<HasRunOnLoopT, PassT>::value>
    addPass(RepeatedPass<PassT> &&Pass) {
  using RepeatedLoopNestPassModelT =
      detail::PassModel<LoopNest, RepeatedPass<PassT>, PreservedAnalyses,
                        LoopAnalysisManager, LoopStandardAnalysisResults &,
                        LPMUpdater &>;
  IsLoopNestPass.push_back(true);
  // Do not use make_unique or emplace_back, they cause too many template
  // instantiations, causing terrible compile times.
  LoopNestPasses.push_back(std::unique_ptr<LoopNestPassConceptT>(
      new RepeatedLoopNestPassModelT(std::move(Pass))));
}

run

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
/// Explicitly specialize the pass manager's run method to handle loop nest
/// structure updates.
PreservedAnalyses
PassManager<Loop, LoopAnalysisManager, LoopStandardAnalysisResults &,
            LPMUpdater &>::run(Loop &L, LoopAnalysisManager &AM,
                               LoopStandardAnalysisResults &AR, LPMUpdater &U) {
  // Runs loop-nest passes only when the current loop is a top-level one.
  PreservedAnalyses PA = (L.isOutermost() && !LoopNestPasses.empty())
                             ? runWithLoopNestPasses(L, AM, AR, U)
                             : runWithoutLoopNestPasses(L, AM, AR, U);

  // Invalidation for the current loop should be handled above, and other loop
  // analysis results shouldn't be impacted by runs over this loop. Therefore,
  // the remaining analysis results in the AnalysisManager are preserved. We
  // mark this with a set so that we don't need to inspect each one
  // individually.
  PA.preserveSet<AllAnalysesOn<Loop>>();

  return PA;
}

/// Run either a loop pass or a loop-nest pass. Returns `None` if
/// PassInstrumentation's BeforePass returns false. Otherwise, returns the
/// preserved analyses of the pass.
template <typename IRUnitT, typename PassT>
Optional<PreservedAnalyses>
runSinglePass(IRUnitT &IR, PassT &Pass, LoopAnalysisManager &AM,
              LoopStandardAnalysisResults &AR, LPMUpdater &U,
              PassInstrumentation &PI);

PreservedAnalyses runWithLoopNestPasses(Loop &L, LoopAnalysisManager &AM,
                                        LoopStandardAnalysisResults &AR,
                                        LPMUpdater &U);
PreservedAnalyses runWithoutLoopNestPasses(Loop &L, LoopAnalysisManager &AM,
                                           LoopStandardAnalysisResults &AR,
                                           LPMUpdater &U);

runSinglePass

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
template <typename IRUnitT, typename PassT>
Optional<PreservedAnalyses> LoopPassManager::runSinglePass(
    IRUnitT &IR, PassT &Pass, LoopAnalysisManager &AM,
    LoopStandardAnalysisResults &AR, LPMUpdater &U, PassInstrumentation &PI) {
  // Get the loop in case of Loop pass and outermost loop in case of LoopNest
  // pass which is to be passed to BeforePass and AfterPass call backs.
  const Loop &L = getLoopFromIR(IR);
  // Check the PassInstrumentation's BeforePass callbacks before running the
  // pass, skip its execution completely if asked to (callback returns false).
  if (!PI.runBeforePass<Loop>(*Pass, L))
    return None;

  PreservedAnalyses PA;
  {
    TimeTraceScope TimeScope(Pass->name(), IR.getName());
    PA = Pass->run(IR, AM, AR, U);
  }

  // do not pass deleted Loop into the instrumentation
  if (U.skipCurrentLoop())
    PI.runAfterPassInvalidated<IRUnitT>(*Pass, PA);
  else
    PI.runAfterPass<Loop>(*Pass, L, PA);
  return PA;
}

关系大概是这个样子的，这里就不贴其他的具体实现了，里面关于Analysis以及各种处理本质上都是类似的

1
2
3
flowchart LR
  run --> runWithLoopNestPasses --> runSinglePass
  run --> runWithOutLoopNestPasses --> runSinglePass

别名

最后也是使用了一个别名

1
2
3
typedef PassManager<Loop, LoopAnalysisManager, LoopStandardAnalysisResults &,
                    LPMUpdater &>
    LoopPassManager;

继承

include/llvm/CodeGen/MachinePassManager.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
/// MachineFunctionPassManager adds/removes below features to/from the base
/// PassManager template instantiation.
///
/// - Support passes that implement doInitialization/doFinalization. This is for
///   machine function passes to work on module level constructs. One such pass
///   is AsmPrinter.
/// ...
/// - The base class `run` method is replaced by an alternative `run` method.
///   See details below.
///
/// - Support codegening in the SCC order. Users include interprocedural
///   register allocation (IPRA).
class MachineFunctionPassManager
    : public PassManager<MachineFunction, MachineFunctionAnalysisManager> {
  using Base = PassManager<MachineFunction, MachineFunctionAnalysisManager>;
  ...
}

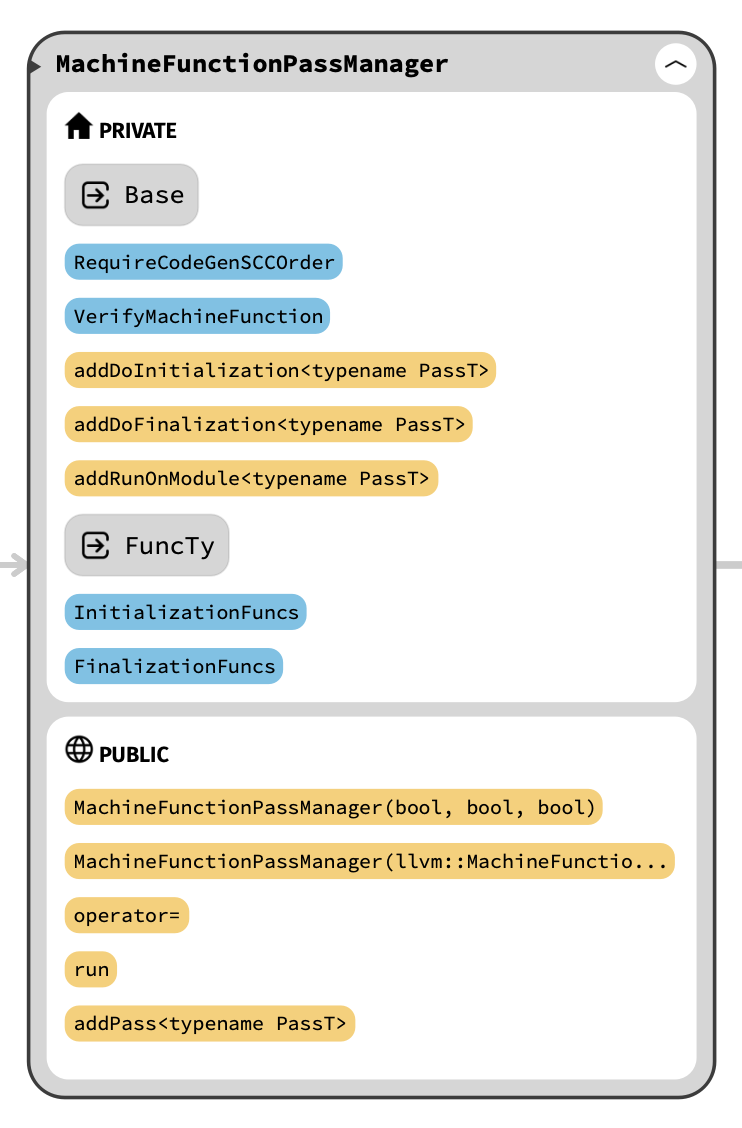

MachineFunctionPassManager属于codegen的部分，而codegen的部分目前还未完全迁移到新的Pass架构中，因此为了兼容旧部分的内容做了一些特殊处理

Untitled

addPass

在旧的Pass中有doInitialization以及doFinalization的部分，因此在addPass的时候同时会将init和final的Pass注册进去

1
2
3
4
5
6
7
8
9
template <typename PassT> void addPass(PassT &&Pass) {
  Base::addPass(std::forward<PassT>(Pass));
  PassConceptT *P = Passes.back().get();
  addDoInitialization<PassT>(P);
  addDoFinalization<PassT>(P);

  // Add machine module pass.
  addRunOnModule<PassT>(P);
}

关于addDoInitialization的处理是这样的，addDoFinalization以及addRunOnModule的函数也是类似的做法，只是更换了detected的条件，不再过多赘述。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
template <typename PassT>
  std::enable_if_t<!is_detected<has_init_t, PassT>::value>
  addDoInitialization(PassConceptT *Pass) {}

  template <typename PassT>
  std::enable_if_t<is_detected<has_init_t, PassT>::value>
  addDoInitialization(PassConceptT *Pass) {
    using PassModelT =
        detail::PassModel<MachineFunction, PassT, PreservedAnalyses,
                          MachineFunctionAnalysisManager>;
    auto *P = static_cast<PassModelT *>(Pass);
    InitializationFuncs.emplace_back(
        [=](Module &M, MachineFunctionAnalysisManager &MFAM) {
          return P->Pass.doInitialization(M, MFAM);
        });
  }

run

之后在run的前后执行（这里省略绝大部分的细节），addDoInitialization以及addDoFinalization的部分在新的Pass架构中我觉得应当是要转换为callback的形式，就像之前的runBeforePass一样

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Error MachineFunctionPassManager::run(Module &M,
                                      MachineFunctionAnalysisManager &MFAM) {
	...
	// Add a PIC to verify machine functions.
  if (VerifyMachineFunction) {
    PassInstrumentation PI = MFAM.getResult<PassInstrumentationAnalysis>(M);

    // No need to pop this callback later since MIR pipeline is flat which means
    // current pipeline is the top-level pipeline. Callbacks are not used after
    // current pipeline.
    PI.pushBeforeNonSkippedPassCallback([&MFAM](StringRef PassID, Any IR) {
			...
    });
  }

  for (auto &F : InitializationFuncs) {
    if (auto Err = F(M, MFAM))
      return Err;
  }

  do {
    // Run machine module passes
    ...
  } while (true);

  for (auto &F : FinalizationFuncs) {
    if (auto Err = F(M, MFAM))
      return Err;
  }

  return Error::success();
}

针对SCC特化了run的PassManager

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// Explicit specialization and instantiation declarations for the pass manager.
// See the comments on the definition of the specialization for details on how
// it differs from the primary template.
template <>
PreservedAnalyses
PassManager<LazyCallGraph::SCC, CGSCCAnalysisManager, LazyCallGraph &,
            CGSCCUpdateResult &>::run(LazyCallGraph::SCC &InitialC,
                                      CGSCCAnalysisManager &AM,
                                      LazyCallGraph &G, CGSCCUpdateResult &UR);
extern template class PassManager<LazyCallGraph::SCC, CGSCCAnalysisManager,
                                  LazyCallGraph &, CGSCCUpdateResult &>;

/// The CGSCC pass manager.
///
/// See the documentation for the PassManager template for details. It runs
/// a sequence of SCC passes over each SCC that the manager is run over. This
/// type serves as a convenient way to refer to this construct.
using CGSCCPassManager =
    PassManager<LazyCallGraph::SCC, CGSCCAnalysisManager, LazyCallGraph &,
                CGSCCUpdateResult &>;

SCC的PassManager只是特化了run的部分。在原来PassManager的基础上加了一些SCC相关的处理，这里出现了proxy这个东西，先忽视它，我们之后再介绍

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
/// Explicitly specialize the pass manager run method to handle call graph
/// updates.
template <>
PreservedAnalyses
PassManager<LazyCallGraph::SCC, CGSCCAnalysisManager, LazyCallGraph &,
            CGSCCUpdateResult &>::run(LazyCallGraph::SCC &InitialC,
                                      CGSCCAnalysisManager &AM,
                                      LazyCallGraph &G, CGSCCUpdateResult &UR) {
  // Request PassInstrumentation from analysis manager, will use it to run
  // instrumenting callbacks for the passes later.
  PassInstrumentation PI =
      AM.getResult<PassInstrumentationAnalysis>(InitialC, G);

  PreservedAnalyses PA = PreservedAnalyses::all();

  // The SCC may be refined while we are running passes over it, so set up
  // a pointer that we can update.
  LazyCallGraph::SCC *C = &InitialC;

  // Get Function analysis manager from its proxy.
  FunctionAnalysisManager &FAM =
      AM.getCachedResult<FunctionAnalysisManagerCGSCCProxy>(*C)->getManager();

  for (auto &Pass : Passes) {
    // Check the PassInstrumentation's BeforePass callbacks before running the
    // pass, skip its execution completely if asked to (callback returns false).
    if (!PI.runBeforePass(*Pass, *C))
      continue;

    PreservedAnalyses PassPA;
    {
      TimeTraceScope TimeScope(Pass->name());
      PassPA = Pass->run(*C, AM, G, UR);
    }

    if (UR.InvalidatedSCCs.count(C))
      PI.runAfterPassInvalidated<LazyCallGraph::SCC>(*Pass, PassPA);
    else
      PI.runAfterPass<LazyCallGraph::SCC>(*Pass, *C, PassPA);

    // Update the SCC if necessary.
    C = UR.UpdatedC ? UR.UpdatedC : C;
    if (UR.UpdatedC) {
      // If C is updated, also create a proxy and update FAM inside the result.
      auto *ResultFAMCP =
          &AM.getResult<FunctionAnalysisManagerCGSCCProxy>(*C, G);
      ResultFAMCP->updateFAM(FAM);
    }

    // If the CGSCC pass wasn't able to provide a valid updated SCC, the
    // current SCC may simply need to be skipped if invalid.
    if (UR.InvalidatedSCCs.count(C)) {
      LLVM_DEBUG(dbgs() << "Skipping invalidated root or island SCC!\n");
      break;
    }
    // Check that we didn't miss any update scenario.
    assert(C->begin() != C->end() && "Cannot have an empty SCC!");

    // Update the analysis manager as each pass runs and potentially
    // invalidates analyses.
    AM.invalidate(*C, PassPA);

    // Finally, we intersect the final preserved analyses to compute the
    // aggregate preserved set for this pass manager.
    PA.intersect(std::move(PassPA));
  }

  // Before we mark all of *this* SCC's analyses as preserved below, intersect
  // this with the cross-SCC preserved analysis set. This is used to allow
  // CGSCC passes to mutate ancestor SCCs and still trigger proper invalidation
  // for them.
  UR.CrossSCCPA.intersect(PA);

  // Invalidation was handled after each pass in the above loop for the current
  // SCC. Therefore, the remaining analysis results in the AnalysisManager are
  // preserved. We mark this with a set so that we don't need to inspect each
  // one individually.
  PA.preserveSet<AllAnalysesOn<LazyCallGraph::SCC>>();

  return PA;
}

旧的PassManager体系

最后再简单讲一下我了解的旧PassManager的一些做法，不会涉及太多细节

核心实现在PassManagerImpl中

lib/IR/LegacyPassManager.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
/// PassManagerImpl manages MPPassManagers
class PassManagerImpl : public Pass,
                        public PMDataManager,
                        public PMTopLevelManager {
  virtual void anchor();

public:
  static char ID;
  explicit PassManagerImpl()
      : Pass(PT_PassManager, ID), PMTopLevelManager(new MPPassManager()) {}

  /// \copydoc PassManager::add()
  void add(Pass *P) {
    schedulePass(P);
  }

  /// createPrinterPass - Get a module printer pass.
  Pass *createPrinterPass(raw_ostream &O,
                          const std::string &Banner) const override {
    return createPrintModulePass(O, Banner);
  }

  /// run - Execute all of the passes scheduled for execution.  Keep track of
  /// whether any of the passes modifies the module, and if so, return true.
  bool run(Module &M);

  using llvm::Pass::doInitialization;
  using llvm::Pass::doFinalization;

	...
}

一个非常大的不同是LegacyPassManager（以下简称LegacyPM）每次添加Pass的时候需要进行一次schedule。LegacyPass中在Analysis内部保存Analysis的结果，而在schedule中管理Pass的顺序以及不再需要的Analysis的释放。

然后我们来看一下run

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
/// run - Execute all of the passes scheduled for execution.  Keep track of
/// whether any of the passes modifies the module, and if so, return true.
bool PassManagerImpl::run(Module &M) {
  bool Changed = false;

  dumpArguments();
  dumpPasses();

  for (ImmutablePass *ImPass : getImmutablePasses())
    Changed |= ImPass->doInitialization(M);

  initializeAllAnalysisInfo();
  for (unsigned Index = 0; Index < getNumContainedManagers(); ++Index) {
    Changed |= getContainedManager(Index)->runOnModule(M);
    M.getContext().yield();
  }

  for (ImmutablePass *ImPass : getImmutablePasses())
    Changed |= ImPass->doFinalization(M);

  return Changed;
}

run的前后会执行doInitialization和doFinalization，这两个函数名是不是很眼熟？就是我们上面提到MachinePassManager中提及的

除了针对Module的PassManager还有一个针对Function的FunctionPassManager。对于FunctionPassManager来说也是需要每次addPass的时候进行schedule

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
bool FunctionPassManagerImpl::run(Function &F) {
	bool Changed = false;

	initializeAllAnalysisInfo();
	for (unsigned Index = 0; Index < getNumContainedManagers(); ++Index) {
	  Changed |= getContainedManager(Index)->runOnFunction(F);
	  F.getContext().yield();
	}

	for (unsigned Index = 0; Index < getNumContainedManagers(); ++Index)
	  getContainedManager(Index)->cleanup();

	wasRun = true;
	return Changed;
}
  • 本文标题：LLVM Pass 其一：PassManager
  • 本文作者：Homura
  • 创建时间：2022-06-26 19:51:06
  • 本文链接：https://homura.live/2022/06/26/llvm-pass/llvm-pass-1/
  • 版权声明：本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
