LLVM异常实现二 libcxxabi
Homura 我摸到了!

在之前的博客提到带有异常相关的C++代码编译成llvm ir后,会插入libcxxabi的__cxa_xxx函数,这期则是来了解这些函数的实现。

接口

libcxxabi中的部分包含了exception,array的分配与释放,virtual相关,demangler等,目前我们在这里只关心异常相关的部分。

首先来看异常的接口,基本上都是之前内容中出现的函数声明,其中包含了分配释放等常见的异常操作。

libcxxabi/include/cxxabi.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
// 2.4.2 Allocating the Exception Object
extern _LIBCXXABI_FUNC_VIS void *
__cxa_allocate_exception(size_t thrown_size) throw();
extern _LIBCXXABI_FUNC_VIS void
__cxa_free_exception(void *thrown_exception) throw();

// 2.4.3 Throwing the Exception Object
extern _LIBCXXABI_FUNC_VIS _LIBCXXABI_NORETURN void
__cxa_throw(void *thrown_exception, std::type_info *tinfo,
void (*dest)(void *));

// 2.5.3 Exception Handlers
extern _LIBCXXABI_FUNC_VIS void *
__cxa_get_exception_ptr(void *exceptionObject) throw();
extern _LIBCXXABI_FUNC_VIS void *
__cxa_begin_catch(void *exceptionObject) throw();
extern _LIBCXXABI_FUNC_VIS void __cxa_end_catch();
#if defined(_LIBCXXABI_ARM_EHABI)
extern _LIBCXXABI_FUNC_VIS bool
__cxa_begin_cleanup(void *exceptionObject) throw();
extern _LIBCXXABI_FUNC_VIS void __cxa_end_cleanup();
#endif
extern _LIBCXXABI_FUNC_VIS std::type_info *__cxa_current_exception_type();

// 2.5.4 Rethrowing Exceptions
extern _LIBCXXABI_FUNC_VIS _LIBCXXABI_NORETURN void __cxa_rethrow();

// 2.6 Auxiliary Runtime APIs
extern _LIBCXXABI_FUNC_VIS _LIBCXXABI_NORETURN void __cxa_bad_cast(void);
extern _LIBCXXABI_FUNC_VIS _LIBCXXABI_NORETURN void __cxa_bad_typeid(void);
extern _LIBCXXABI_FUNC_VIS _LIBCXXABI_NORETURN void
__cxa_throw_bad_array_new_length(void);

__cxa_allocate_exception

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
//  Allocate a __cxa_exception object, and zero-fill it.
// Reserve "thrown_size" bytes on the end for the user's exception
// object. Zero-fill the object. If memory can't be allocated, call
// std::terminate. Return a pointer to the memory to be used for the
// user's exception object.
void *__cxa_allocate_exception(size_t thrown_size) throw() {
size_t actual_size = cxa_exception_size_from_exception_thrown_size(thrown_size);

// Allocate extra space before the __cxa_exception header to ensure the
// start of the thrown object is sufficiently aligned.
size_t header_offset = get_cxa_exception_offset();
char *raw_buffer =
(char *)__aligned_malloc_with_fallback(header_offset + actual_size);
if (NULL == raw_buffer)
std::terminate();

__cxa_exception *exception_header =
static_cast<__cxa_exception *>((void *)(raw_buffer + header_offset));
::memset(exception_header, 0, actual_size);
return thrown_object_from_cxa_exception(exception_header);
}

这个函数主要分配了一块空间用于作为异常处理的对象,这块空间由两部分组成:throw对象的size以及__cxa_exception对象。最后返回的是throw对象开始位置的指针。

1
2
3
4
| __cxa_exception |     size    |
^
|
指针

接下来我们看一下更细致的代码实现。

actual size

首先是计算实际分配的size,其中包含了前面的__cxa_exception以及throw对象的size。

1
2
3
4
5
6
7
8
9
10
11
// Round s up to next multiple of a.
static inline
size_t aligned_allocation_size(size_t s, size_t a) {
return (s + a - 1) & ~(a - 1);
}

static inline
size_t cxa_exception_size_from_exception_thrown_size(size_t size) {
return aligned_allocation_size(size + sizeof (__cxa_exception),
alignof(__cxa_exception));
}

exception offset

另外需要计算header的起始地址,要确保对象的空间能满足align的计算,如果对象的align小于目标机器的align那么会在最前面填充。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// Return the offset of the __cxa_exception header from the start of the
// allocated buffer. If __cxa_exception's alignment is smaller than the maximum
// useful alignment for the target machine, padding has to be inserted before
// the header to ensure the thrown object that follows the header is
// sufficiently aligned. This happens if _Unwind_exception isn't double-word
// aligned (on Darwin, for example).
static size_t get_cxa_exception_offset() {
struct S {
} __attribute__((aligned));

// Compute the maximum alignment for the target machine.
constexpr size_t alignment = alignof(S);
constexpr size_t excp_size = sizeof(__cxa_exception);
constexpr size_t aligned_size =
(excp_size + alignment - 1) / alignment * alignment;
constexpr size_t offset = aligned_size - excp_size;
static_assert((offset == 0 || alignof(_Unwind_Exception) < alignment),
"offset is non-zero only if _Unwind_Exception isn't aligned");
return offset;
}

首先使用一个空结构体,按照struct的最小size进行align。如果__exa_exception的align小于目标机器的最大可用align,那么填充,返回offset,这个offset也就是实际上header开始的位置。

malloc

malloc的size是包含了header_offset以及实际分配的整个size。

malloc的过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
void* __aligned_malloc_with_fallback(size_t size) {
#if defined(_WIN32)
if (void* dest = std::__libcpp_aligned_alloc(alignof(__aligned_type), size))
return dest;
#elif defined(_LIBCPP_HAS_NO_LIBRARY_ALIGNED_ALLOCATION)
if (void* dest = ::malloc(size))
return dest;
#else
if (size == 0)
size = 1;
if (void* dest = std::__libcpp_aligned_alloc(__alignof(__aligned_type), size))
return dest;
#endif
return fallback_malloc(size);
}

这里使用了标准库的align_alloc

关于fallback则是标准库分配失败的情况下的备选方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
void* fallback_malloc(size_t len) {
heap_node *p, *prev;
const size_t nelems = alloc_size(len);
mutexor mtx(&heap_mutex);

if (NULL == freelist)
init_heap();

// Walk the free list, looking for a "big enough" chunk
for (p = freelist, prev = 0; p && p != list_end;
prev = p, p = node_from_offset(p->next_node)) {

if (p->len > nelems) { // chunk is larger, shorten, and return the tail
heap_node* q;

p->len = static_cast<heap_size>(p->len - nelems);
q = p + p->len;
q->next_node = 0;
q->len = static_cast<heap_size>(nelems);
return (void*)(q + 1);
}

if (p->len == nelems) { // exact size match
if (prev == 0)
freelist = node_from_offset(p->next_node);
else
prev->next_node = p->next_node;
p->next_node = 0;
return (void*)(p + 1);
}
}
return NULL; // couldn't find a spot big enough
}

返回异常对象指针

malloc后创建了一个__cxa_exception的指针,跳过header_offset指向了actual_size,并且将actual_size的部分置0

1
2
3
				exception_header
|
| header_offset | actual_size |

将actual size拆开的话实际的内存视图如下

1
2
3
				exception_header
|
| header_offset | __cxa_exception | thrown_size |

之后将exception_header这个指针递增,以便指向thrown_size,并且转换为void*返回

1
2
3
4
5
6
7
8
9
// Note:  This is never called when exception_header is masquerading as a
// __cxa_dependent_exception.
static
inline
void*
thrown_object_from_cxa_exception(__cxa_exception* exception_header)
{
return static_cast<void*>(exception_header + 1);
}

下图中throw_object是最后实际返回的地址。

1
2
3
					                   throw_object
|
| header_offset | __cxa_exception | thrown_size |
1
2
3
4
5
6
7
8
9
10
11
------------------   <-- raw_buffer
header offset
------------------

__cxa_exception

------------------ <-- throw_object

thrown_size

------------------

__cxa_free

1
2
3
4
5
6
7
8
//  Free a __cxa_exception object allocated with __cxa_allocate_exception.
void __cxa_free_exception(void *thrown_object) throw() {
// Compute the size of the padding before the header.
size_t header_offset = get_cxa_exception_offset();
char *raw_buffer =
((char *)cxa_exception_from_thrown_object(thrown_object)) - header_offset;
__aligned_free_with_fallback((void *)raw_buffer);
}

按照上面的内存排布,从object反向找到对应的raw_buffer然后再释放。需要将thrown_object的指针回退一个cxa_exception的位置,再回退header_offset,最终就能找到前面allocate的起始位置。

1
2
3
4
5
6
7
static
inline
__cxa_exception*
cxa_exception_from_thrown_object(void* thrown_object)
{
return static_cast<__cxa_exception*>(thrown_object) - 1;
}
1
2
3
4
5
6
7
8
9
10
11
void __aligned_free_with_fallback(void* ptr) {
if (is_fallback_ptr(ptr))
fallback_free(ptr);
else {
#if defined(_LIBCPP_HAS_NO_LIBRARY_ALIGNED_ALLOCATION)
::free(ptr);
#else
std::__libcpp_aligned_free(ptr);
#endif
}
}

__cxa_throw

这里开始跳转到libunwind

libcxxabi/src/cxa_exception.cpp

初始化通过excepting object获取到的exception header

  1. 通过exception object获取header

  2. __cxa_exception设置基本信息

    1. 保存当前的unexpected_handler和terminate_handler
    2. 保存tinfo和dest argument
  3. 在unwind header设置exception_class,64bit

  4. 递增uncaught_exception flag

  5. 调用_Unwind_RaiseException,参数是指向thrown exception的指针。

    这个函数开始执行unwinding

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
// 2.4.3 Throwing the Exception Object
/*
After constructing the exception object with the throw argument value,
the generated code calls the __cxa_throw runtime library routine. This
routine never returns.

The __cxa_throw routine will do the following:

* Obtain the __cxa_exception header from the thrown exception object address,
which can be computed as follows:
__cxa_exception *header = ((__cxa_exception *) thrown_exception - 1);
* Save the current unexpected_handler and terminate_handler in the __cxa_exception header.
* Save the tinfo and dest arguments in the __cxa_exception header.
* Set the exception_class field in the unwind header. This is a 64-bit value
representing the ASCII string "XXXXC++\0", where "XXXX" is a
vendor-dependent string. That is, for implementations conforming to this
ABI, the low-order 4 bytes of this 64-bit value will be "C++\0".
* Increment the uncaught_exception flag.
* Call _Unwind_RaiseException in the system unwind library, Its argument is the
pointer to the thrown exception, which __cxa_throw itself received as an argument.
__Unwind_RaiseException begins the process of stack unwinding, described
in Section 2.5. In special cases, such as an inability to find a
handler, _Unwind_RaiseException may return. In that case, __cxa_throw
will call terminate, assuming that there was no handler for the
exception.
*/
void
__cxa_throw(void *thrown_object, std::type_info *tinfo, void (*dest)(void *)) {
__cxa_eh_globals *globals = __cxa_get_globals();
__cxa_exception* exception_header = cxa_exception_from_thrown_object(thrown_object);

exception_header->unexpectedHandler = std::get_unexpected();
exception_header->terminateHandler = std::get_terminate();
exception_header->exceptionType = tinfo;
exception_header->exceptionDestructor = dest;
setOurExceptionClass(&exception_header->unwindHeader);
exception_header->referenceCount = 1; // This is a newly allocated exception, no need for thread safety.
globals->uncaughtExceptions += 1; // Not atomically, since globals are thread-local

exception_header->unwindHeader.exception_cleanup = exception_cleanup_func;

#if __has_feature(address_sanitizer)
// Inform the ASan runtime that now might be a good time to clean stuff up.
__asan_handle_no_return();
#endif

#ifdef __USING_SJLJ_EXCEPTIONS__
_Unwind_SjLj_RaiseException(&exception_header->unwindHeader);
#else
_Unwind_RaiseException(&exception_header->unwindHeader);
#endif
// This only happens when there is no handler, or some unexpected unwinding
// error happens.
failed_throw(exception_header);
}

首先是获取eh_globals和获取exception header的过程。获取header的时候由于header排布在thrown_object之前因此直接回退一个对象的位置即可,和allocate的时候返回的过程是相反的。

1
2
3
4
5
6
7
8
//  Utility routines
static
inline
__cxa_exception*
cxa_exception_from_thrown_object(void* thrown_object)
{
return static_cast<__cxa_exception*>(thrown_object) - 1;
}

__cxa_eh_globals

cxa_exception.h

1
2
3
4
5
6
7
8
9
10
struct _LIBCXXABI_HIDDEN __cxa_eh_globals {
__cxa_exception * caughtExceptions;
unsigned int uncaughtExceptions;
#if defined(_LIBCXXABI_ARM_EHABI)
__cxa_exception* propagatingExceptions;
#endif
};

extern "C" _LIBCXXABI_FUNC_VIS __cxa_eh_globals * __cxa_get_globals ();
extern "C" _LIBCXXABI_FUNC_VIS __cxa_eh_globals * __cxa_get_globals_fast ();

由于__cxa_exception里面保存了next,因此这里相当于保存了一个链表头

exa_exception_storage.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
#if defined(_LIBCXXABI_HAS_NO_THREADS)

namespace __cxxabiv1 {
extern "C" {
static __cxa_eh_globals eh_globals;
__cxa_eh_globals *__cxa_get_globals() { return &eh_globals; }
__cxa_eh_globals *__cxa_get_globals_fast() { return &eh_globals; }
} // extern "C"
} // namespace __cxxabiv1

#elif defined(HAS_THREAD_LOCAL)

namespace __cxxabiv1 {
namespace {
__cxa_eh_globals *__globals() {
static thread_local __cxa_eh_globals eh_globals;
return &eh_globals;
}
} // namespace

extern "C" {
__cxa_eh_globals *__cxa_get_globals() { return __globals(); }
__cxa_eh_globals *__cxa_get_globals_fast() { return __globals(); }
} // extern "C"
} // namespace __cxxabiv1

这里有一个thread_local的判断,不过本质是都是在这个cpp文件存了一个static的eh_global (exception handing global)

多个异常的管理

__cxa_eh_globals里面保存了栈顶的exception,以及未处理的exception数量。

每次有新的exception时,当前exception的header中的nextException会指向当前的caughtException,然后更新__cxa_eh_globals里面的exception header为这个新的exception的header。

1
2
eh_globals
header = nullptr

产生了新的exception1

1
2
3
4
eh_globals
header = nullptr
exception header1
next = nullptr

更新后

1
2
3
4
eh_globals
header = exception header1
exception header1
next = nullptr(原始的eh_globals的nullptr

产生了新的exception2

1
2
3
4
5
6
eh_globals
header = exception header1
exception header1
next = nullptr(原始的eh_globals的nullptr
exception header2
next = nullptr

更新后

1
2
3
4
5
6
eh_globals
header = exception header2
exception header1
next = nullptr(原始的eh_globals的nullptr
exception header2
next = exception header1(设置global之前global中的header)

异常处理过程优先处理最新的exception,处理完后会处理之前一个旧的exception,按照处理顺序来说也就是下一个。由于并不需要从旧向新的方向进行exception的查询,因此这里只需要支持单向即可。这里是添加,对应的删除也是类似。

简单总结下,begin_catch的时候减少计数并且把cxa_exception放到栈上,而在end_catch的时候将对象从globals中取出,而在catch以及throw的过程中通过增减uncaughtExceptions来管理当前未处理异常对象的数量。

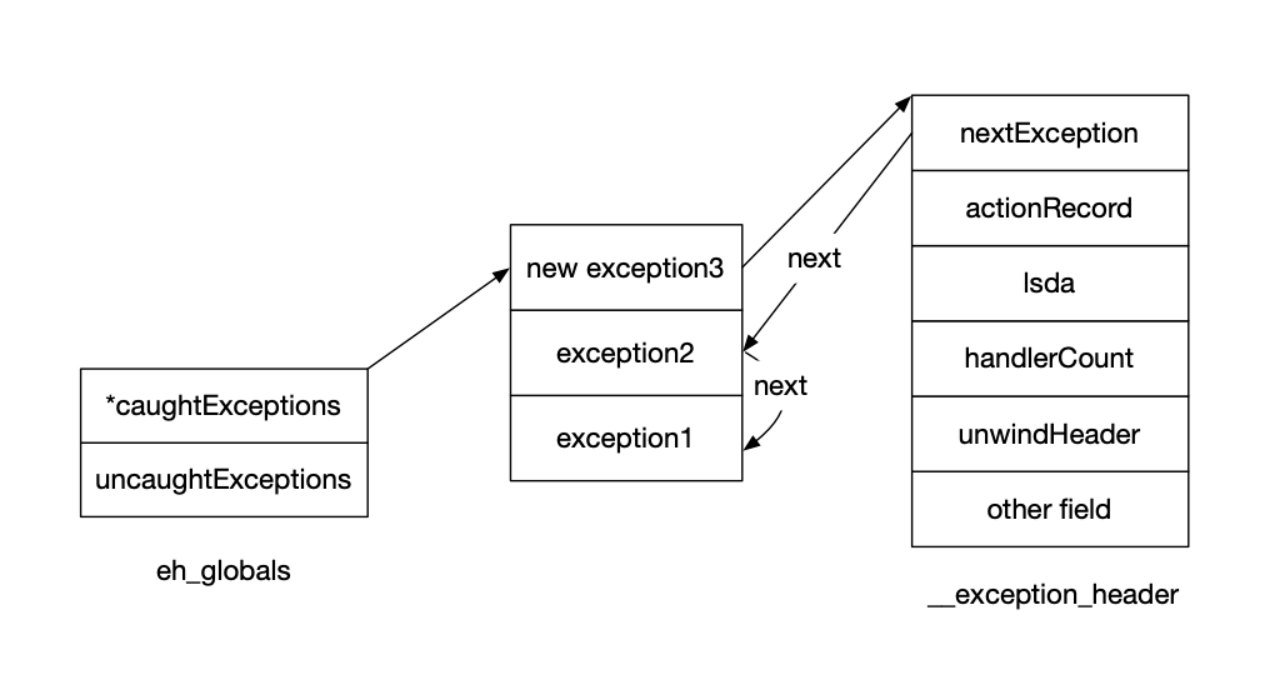

Untitled

__cxa_catch

主要做的事情是globals以及exception_header的更新

__cxa_begin_catch

这里才真正开始把exception放到__cxa_eh_globals里。

有两类exception

  1. native:primary或者dependent。处理的时候并不关心具体是哪种。主要做了如下几件事情

    1. 增加handler count
    2. push到栈上
    3. 减少uncaught_exception count
    4. 返回adjusted pointer to the exception object
  2. foreign:不包含__cxa_exception_header的异常。

    1. 不能增加handler count

    2. 只有stack为空才能push到stack,因为没办法连接到当前栈上

      栈不为空则terminate

    3. 不增加uncaught_exception

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
void*
__cxa_begin_catch(void* unwind_arg) throw()
{
_Unwind_Exception* unwind_exception = static_cast<_Unwind_Exception*>(unwind_arg);
bool native_exception = __isOurExceptionClass(unwind_exception);
__cxa_eh_globals* globals = __cxa_get_globals();
// exception_header is a hackish offset from a foreign exception, but it
// works as long as we're careful not to try to access any __cxa_exception
// parts.
__cxa_exception* exception_header =
cxa_exception_from_exception_unwind_exception
(
static_cast<_Unwind_Exception*>(unwind_exception)
);

#if defined(__MVS__)
// Remove the exception object from the linked list of exceptions that the z/OS unwinder
// maintains before adding it to the libc++abi list of caught exceptions.
// The libc++abi will manage the lifetime of the exception from this point forward.
_UnwindZOS_PopException();
#endif

if (native_exception)
{
// Increment the handler count, removing the flag about being rethrown
exception_header->handlerCount = exception_header->handlerCount < 0 ?
-exception_header->handlerCount + 1 : exception_header->handlerCount + 1;
// place the exception on the top of the stack if it's not already
// there by a previous rethrow
if (exception_header != globals->caughtExceptions)
{
exception_header->nextException = globals->caughtExceptions;
globals->caughtExceptions = exception_header;
}
globals->uncaughtExceptions -= 1; // Not atomically, since globals are thread-local
#if defined(_LIBCXXABI_ARM_EHABI)
return reinterpret_cast<void*>(exception_header->unwindHeader.barrier_cache.bitpattern[0]);
#else
return exception_header->adjustedPtr;
#endif
}
// Else this is a foreign exception
// If the caughtExceptions stack is not empty, terminate
if (globals->caughtExceptions != 0)
std::terminate();
// Push the foreign exception on to the stack
globals->caughtExceptions = exception_header;
return unwind_exception + 1;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
bool __isOurExceptionClass(const _Unwind_Exception* unwind_exception) {
return (__getExceptionClass(unwind_exception) & get_vendor_and_language) ==
(kOurExceptionClass & get_vendor_and_language);
}

// Is it one of ours?
uint64_t __getExceptionClass(const _Unwind_Exception* unwind_exception) {
// On x86 and some ARM unwinders, unwind_exception->exception_class is
// a uint64_t. On other ARM unwinders, it is a char[8].
// See: http://infocenter.arm.com/help/topic/com.arm.doc.ihi0038b/IHI0038B_ehabi.pdf
// So we just copy it into a uint64_t to be sure.
uint64_t exClass;
::memcpy(&exClass, &unwind_exception->exception_class, sizeof(exClass));
return exClass;
}

static const uint64_t kOurExceptionClass = 0x434C4E47432B2B00; // CLNGC++\0
static const uint64_t kOurDependentExceptionClass = 0x434C4E47432B2B01; // CLNGC++\1
static const uint64_t get_vendor_and_language = 0xFFFFFFFFFFFFFF00; // mask for CLNGC++

get ant set exception class

__cxa_end_catch

  1. 获取基本信息
  2. native exception
    1. handlerCount小于0的情况
      1. 递增count为0,那么将当前处理的exception移除
    2. 大于0
      1. 递减count如果为0,那么将当前处理的exception移除
      2. isDependentException,那么释放
      3. 减少refcount
  3. foreign exception
    1. 删除对应的exception
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
void __cxa_end_catch() {
static_assert(sizeof(__cxa_exception) == sizeof(__cxa_dependent_exception),
"sizeof(__cxa_exception) must be equal to "
"sizeof(__cxa_dependent_exception)");
static_assert(__builtin_offsetof(__cxa_exception, referenceCount) ==
__builtin_offsetof(__cxa_dependent_exception,
primaryException),
"the layout of __cxa_exception must match the layout of "
"__cxa_dependent_exception");
static_assert(__builtin_offsetof(__cxa_exception, handlerCount) ==
__builtin_offsetof(__cxa_dependent_exception, handlerCount),
"the layout of __cxa_exception must match the layout of "
"__cxa_dependent_exception");
__cxa_eh_globals* globals = __cxa_get_globals_fast(); // __cxa_get_globals called in __cxa_begin_catch
__cxa_exception* exception_header = globals->caughtExceptions;
// If we've rethrown a foreign exception, then globals->caughtExceptions
// will have been made an empty stack by __cxa_rethrow() and there is
// nothing more to be done. Do nothing!
if (NULL != exception_header)
{
bool native_exception = __isOurExceptionClass(&exception_header->unwindHeader);
if (native_exception)
{
// This is a native exception
if (exception_header->handlerCount < 0)
{
// The exception has been rethrown by __cxa_rethrow, so don't delete it
if (0 == incrementHandlerCount(exception_header))
{
// Remove from the chain of uncaught exceptions
globals->caughtExceptions = exception_header->nextException;
// but don't destroy
}
// Keep handlerCount negative in case there are nested catch's
// that need to be told that this exception is rethrown. Don't
// erase this rethrow flag until the exception is recaught.
}
else
{
// The native exception has not been rethrown
if (0 == decrementHandlerCount(exception_header))
{
// Remove from the chain of uncaught exceptions
globals->caughtExceptions = exception_header->nextException;
// Destroy this exception, being careful to distinguish
// between dependent and primary exceptions
if (isDependentException(&exception_header->unwindHeader))
{
// Reset exception_header to primaryException and deallocate the dependent exception
__cxa_dependent_exception* dep_exception_header =
reinterpret_cast<__cxa_dependent_exception*>(exception_header);
exception_header =
cxa_exception_from_thrown_object(dep_exception_header->primaryException);
__cxa_free_dependent_exception(dep_exception_header);
}
// Destroy the primary exception only if its referenceCount goes to 0
// (this decrement must be atomic)
__cxa_decrement_exception_refcount(thrown_object_from_cxa_exception(exception_header));
}
}
}
else
{
// The foreign exception has not been rethrown. Pop the stack
// and delete it. If there are nested catch's and they try
// to touch a foreign exception in any way, that is undefined
// behavior. They likely can't since the only way to catch
// a foreign exception is with catch (...)!
_Unwind_DeleteException(&globals->caughtExceptions->unwindHeader);
globals->caughtExceptions = 0;
}
}
}
  • 本文标题:LLVM异常实现二 libcxxabi
  • 本文作者:Homura
  • 创建时间:2024-10-02 11:28:05
  • 本文链接:https://homura.live/2024/10/02/Exception/exception-2/
  • 版权声明:本博客所有文章除特别声明外,均采用 BY-NC-SA 许可协议。转载请注明出处!
